Drill stem testing tool gauge carrier DGA Cased hole

Price: 400.0 USD
Payment Terms: T/T,L/C
Special Groups: Case hole DST (111)
DST Tools (146)
DST Gauge carrier (5)
drill stem testing (124)
Place of Origin: Shaanxi, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: Top-Gauge Carrier-01
Production Capacity: 10sets/month
Delivery Date: 35days
Working Temperature: 400F
Type: Full bore
Condition: NEW
Size: 5"
Means of Transport: Ocean,Land,Air
Packing: plywood
Working pressure: 105Mpa
Material: AISI41XX/Inconnel
Use: Gauge Carrier
Standard: Nace MR0175/ISO
Application: well testing

Drill stem testing tools Gague carrier is for cased hole full bore type in size casing 5"OD, Working pressure 105Mpa, Design as per Requested.

Cased Hole Drill stem testing tools gauge carrier DGA

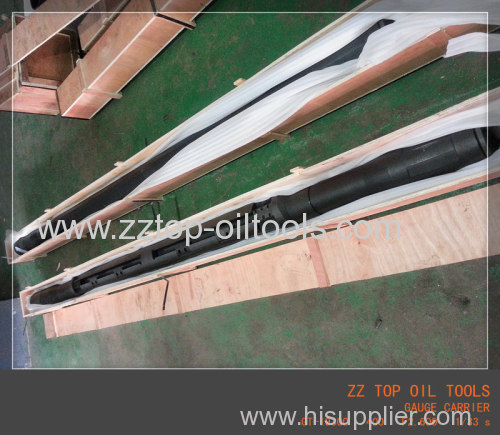

Drill stem testing tool gauge carrier DGA Cased hole


The Gauge carrier will be designed as per testing requirements, for example to test Annular pressure or Tubing pressure, how many gauges will be carried, the carrier sizes will be also affected by gauges sizes,i.e. OD, Length.
Normally the gauge carrier connects with its adapter which will connect with carrier directly.

The designed gauge carrier is used for carrying four electric pressure gauge or temperature gauge,  record annular pressure(Temperature) and tubing pressure(temperature) data.

The gauge carrier apply to the pressure or temperature gauge in 5 inch outer diameter, length in 28inch, the gauges connect with adapter which will be installed with carrier, the gauge protector ring will hold the gauge on to carrier, the gauge carrier is in full bore type easy for special downhole testing job.

The gauge carrier is composed by three mani parts which is top connector, bottom connector and carrier body, there are four slots in carrier body to hold total 4 gauges, each slot length is about 36" which is easy for gauge installation.


No

Specification

5″

1

OD

127.5mm

2

ID

57mm

3

Length

2768mm

4

Working pressure

105MPa

5

Internal pressure strength

196MPa

6

External pressure strength

177MPa

7

Tensile strength

1866KN

8

Torque strength

43.4KN.M

9

Service

H2S as per NACE MR-0175(>175F°)

10

Woking Temperature

-29℃+204℃

11

Connection thread

3 7/8″CAS.B×P

12

Gauge size applicable

Φ33mmX680mm

13

Eccentricity

10mm


Cased Hole Drill stem testing tools gauge carrier DGA
Testing Chart
Cased Hole Drill stem testing tools gauge carrier DGA

Testing Prepare

ZZ TOP OIL TOOLS is the professional manufacturer for the drill stem testing tools and surface testing equipment. All the DST tools are conformed with NACE MR 0175 with traceability,and the DST tools can be worked in H2S & CO2 above 175 F and full H2S, also with the skilled and experienced engineers, we can design the drill stem testing tools as per customer's well condition. Moreover, we supply the training in our factory and operation instruction at the well site. The DST tools are exported to USA, Colombia, India, Pakistan, Iran, Brazil etc. and enjoy the good reputation from the customers.

To shorten the delivery time, we proceeded the DST Tools in stock:

Packer,circualting valve,select tester valve,APR N-valve,OMNI valve,Hydraulic Jar,Tubing string tester

1. Full bore Packer, 7" Casing, working pressure 70Mpa, Working Temperature 400F, Connection: IF, 4set

2. Tester valve, 5", Working pressure 105Mpa, Working temperature 400F, Connection CAS. BXP, 4 sets

3. Hydraulic Jar,5", Working pressure 105Mpa, Working temperature 400F, Connection CAS. BXP, 4sets

4. Rupture disk Circulating valve, 5", Working pressure 105Mpa, Working temperature 400F, Connection CAS. BXP, 4sets

5. Flowhead (surface test tree), 3 1/16", working pressure 70 Mpa. 1set
