DST Champ packer high pressure from China manufacturer

Price:	500.0~10000.0 USD
Payment Terms:	T/T
Place of Origin:	Shaanxi, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TOP-Packer-04

Production Capacity: 8 pcs/month

Delivery Date: STOCK

Type: full bore drill stem testin...

service: H2S

Condition: New

Operate: ANNULAR PRESSURE OPERATED

working condition: High pressure high temperat...

Means of Transport: Ocean

Packing: polywood case

Application: oil well testing

working pressure: 10000psi ~ 15000psi

standard: NACE MR0175

Size: 7"

Delivery: Stock

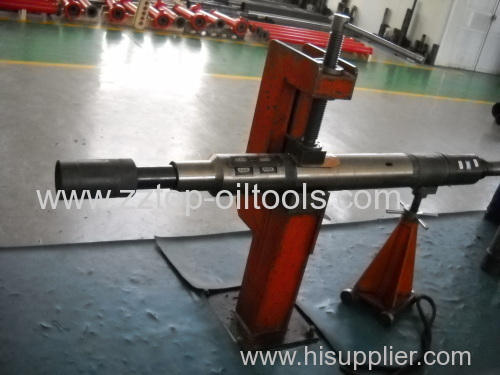

The CHAMP IV Packer is improved from RTTS Packer. Compared with RTTS Packer,the CHAMP IV Packer has a concentric bypass.

Champ packer Service in High pressure high temperature IN STOCK

Briefly Introduce

The CHAMP IV Packer is improved from RTTS Packer. Compared with RTTS Packer,the CHAMP IV Packer has a concentric bypass. The CHAMP IV Packer has the capability of circulating below the packer and other parts have the same function as RTTS Packer.

Working Principle and structure features

The CHAMP IV Packer is a hookwall-type retrievable packer with concentric bypass. While going in the hole, the bypass is held open until slips are set by the J-Slot that controls the mechanical slips. The bypass is held closed by a balancing piston, which uses work-string pressure to place a downward force on the balancing coupling to prevent the bypass from being pumped open.

Each assembled tool includes the following components:

J-Slot mechanism

Mechanical Slips

Packer Element.

Hydraulic slips.
