Select Tester Valve APR DST Tools from China manufacturer

Price:	500.0~10000.0 USD
Payment Terms:	T/T
Special Groups:	DST Tools (146)
Place of Origin:	Shaanxi, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TOP-Tester Valve-03

Production Capacity: 10 pcs/month

Delivery Date: Stock

Type: full bore drill stem testin...

service: H2S

Condition: New

Operate: ANNULAR PRESSURE OPERATED

delivery: Stock

Means of Transport: Ocean

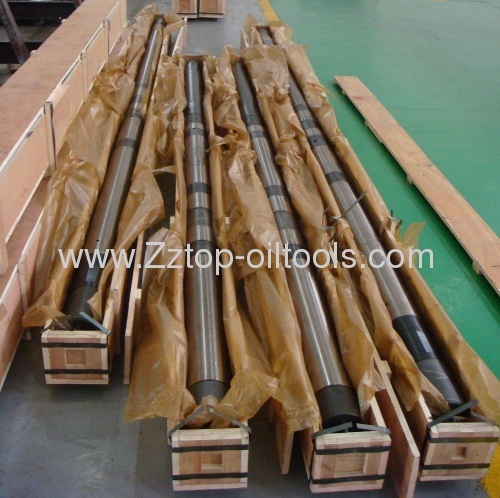

Packing: polywood case

Application: oil well testing

working pressure: 10000psi ~ 15000psi

standard: NACE MR0175

Size: 5"

working condition: high pressure high temperat...

The select tester valve is a full opening, annulus pressure operated tool used in cased holes. This tool has the capabilities of taking multiple downh

The select tester valve is a full opening, annulus pressure operated tool used in cased holes. This tool has the capabilities of taking multiple downhole closures where pipe manipulation is restricted and a full opening string is desired. This tool has the same basic features of the 15K LPR-N Tester Valve plus additional features that include:

Ø The ability to lock the ball valve in the open position at any point during the test.

Ø The ability to reactivate the tool for normal operations.

The select tester valve is composed of four basic sections; ball valve section, upper hydraulic section, nitrogen section and the metering section.

The ball valve section contains the ball valve and the mechanism that rotates the ball when the tool is activated; the ball is rotated to the open position allowing the reservoir to flow into the testing string.

The upper hydraulic section is contained between the upper annulus ports and the nitrogen filler valve. The critical part of this section is the metering (power) cartridge and selector.

NO.	Specification	5"
1	OD	5"(127mm)
2	ID	2.25"(57mm)
3	Length(mm)	288.2"(7319.5mm)
4	Working pressure	15000 PSI(105Mpa)
5	Maximum open pressure differential	5000PSI(35Mpa)
6	Tensile strength(Yield)	2020.5kN
7	Internal Pressure Strength	151Mpa
8	External Pressure Strength	141Mpa
9	Torque strength	30.9kN.m
10	Service Environment	Mud, crude oil, natural gas with H2S, Apply to NACE MR0175-2003
11	End connection	3 7/8CAS. BXP, 3 1/2 IF BXP
12	Service temperature	-20oF~400oF
